PTS Flowbench Build Pictures (unfinished)

My bench build is a working prototype and as such is not photographed in a finished condition, you can finish your bench in laminate, paint etc. I'm using my bench as an R&D setup so I can test various blower combinations, sensor locations etc. This will aid in assistance to other builders in not having to experiment if they want to make changes. I'm able to do that with my bench and offer them feedback.

The goal of this bench design was simple; function and simplicity all while maintaining accuracy and repeatability.

This bench was built in my shop using simple power hand tools; circular saw, cordless drill, saber saw, router and various other small tools. All materials can be purchased at a local lumber supply or home store some specialty parts are used but can be substituted as required.


leftside leftsidetop
right side back
PTS Manometer

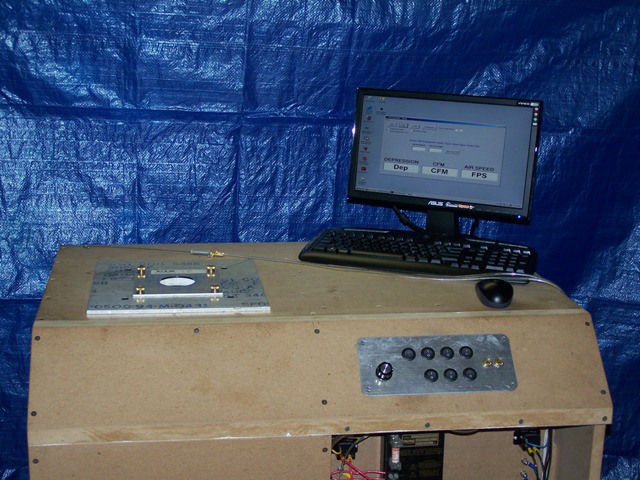

PTS 3 sensor digital manometer

Here is a Quicktime video showing the bench
using the digital manometer flowing
400 cfm @28" with 6 blowers running.

400@28.mov
Couple of pictures of what  the detailed drawings look like
Panels Assembly

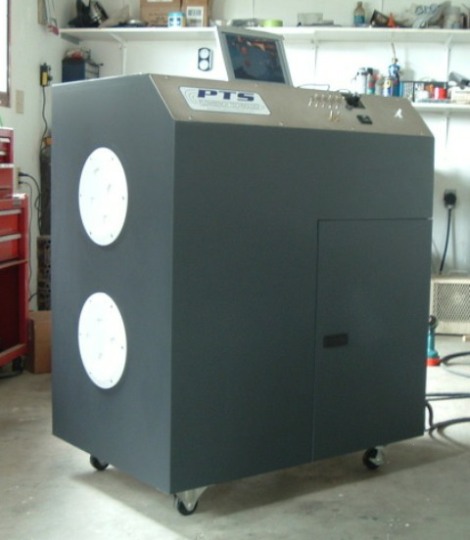

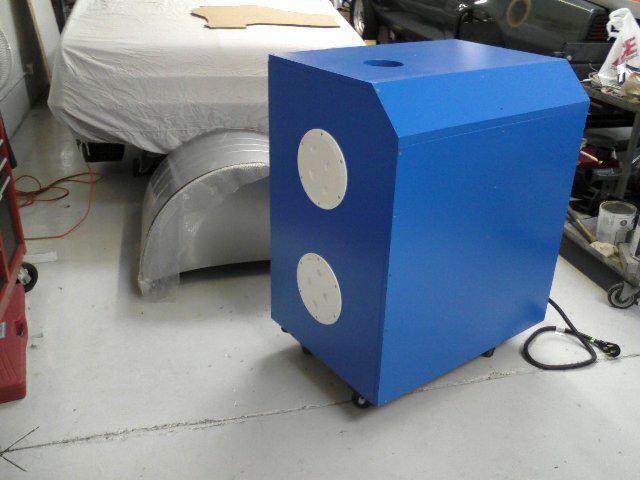

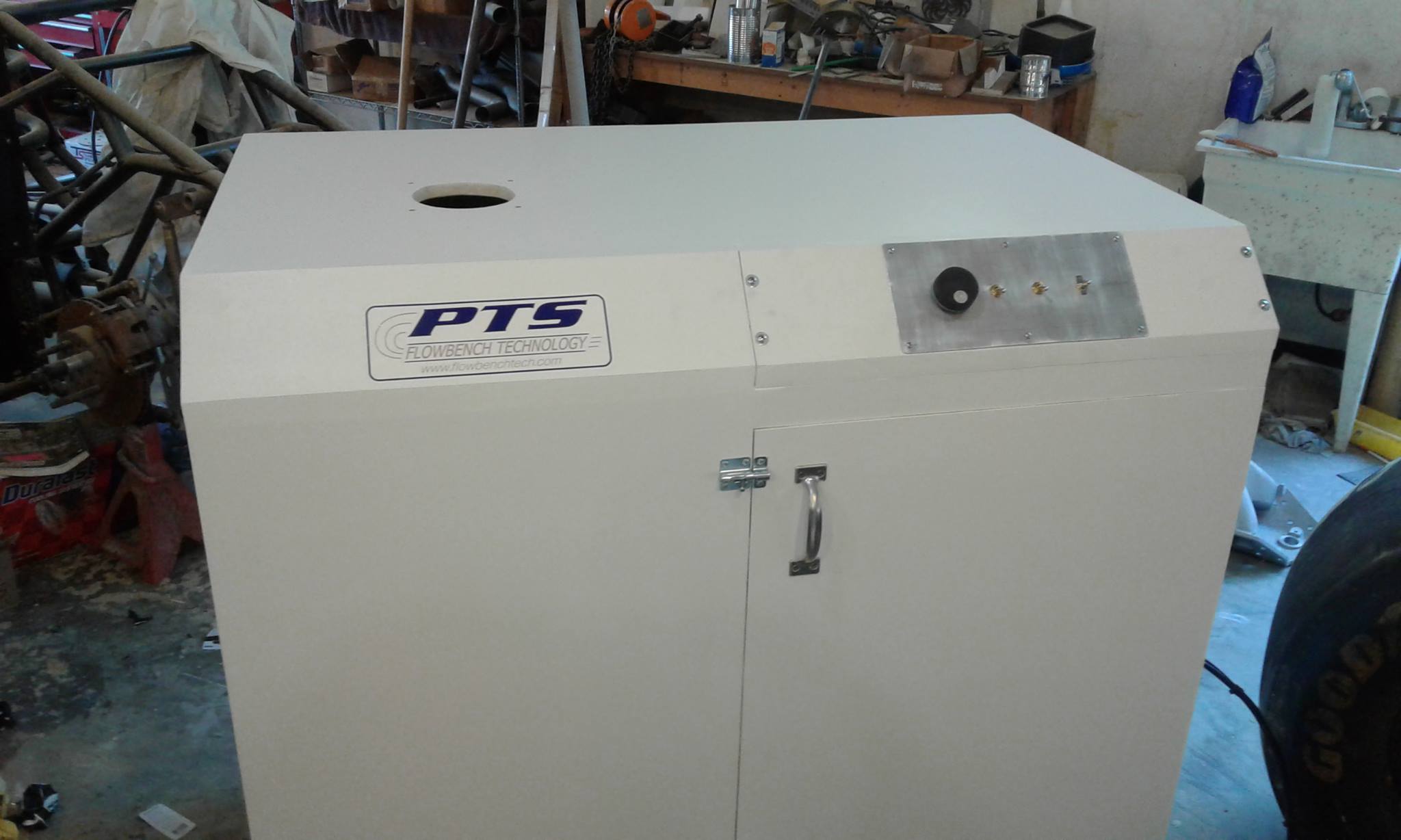

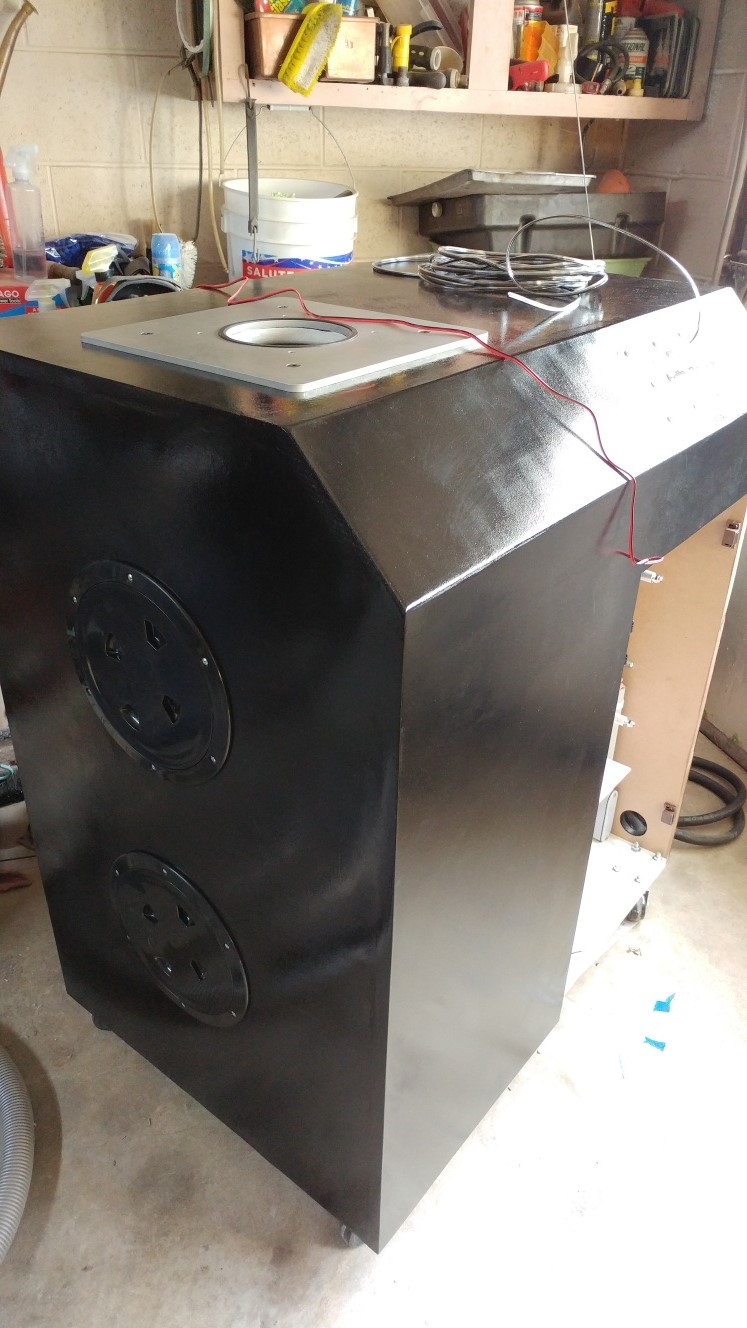

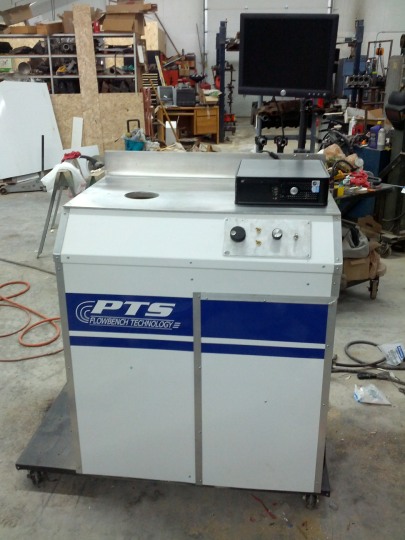

 PTS Style Flowbench - Customer Build

Tomas Flowbench Tomas Flowbench-2
Tomas Flowbench-1 Customer Flowbench
Fully Digital using the
PTS Digital Manometer

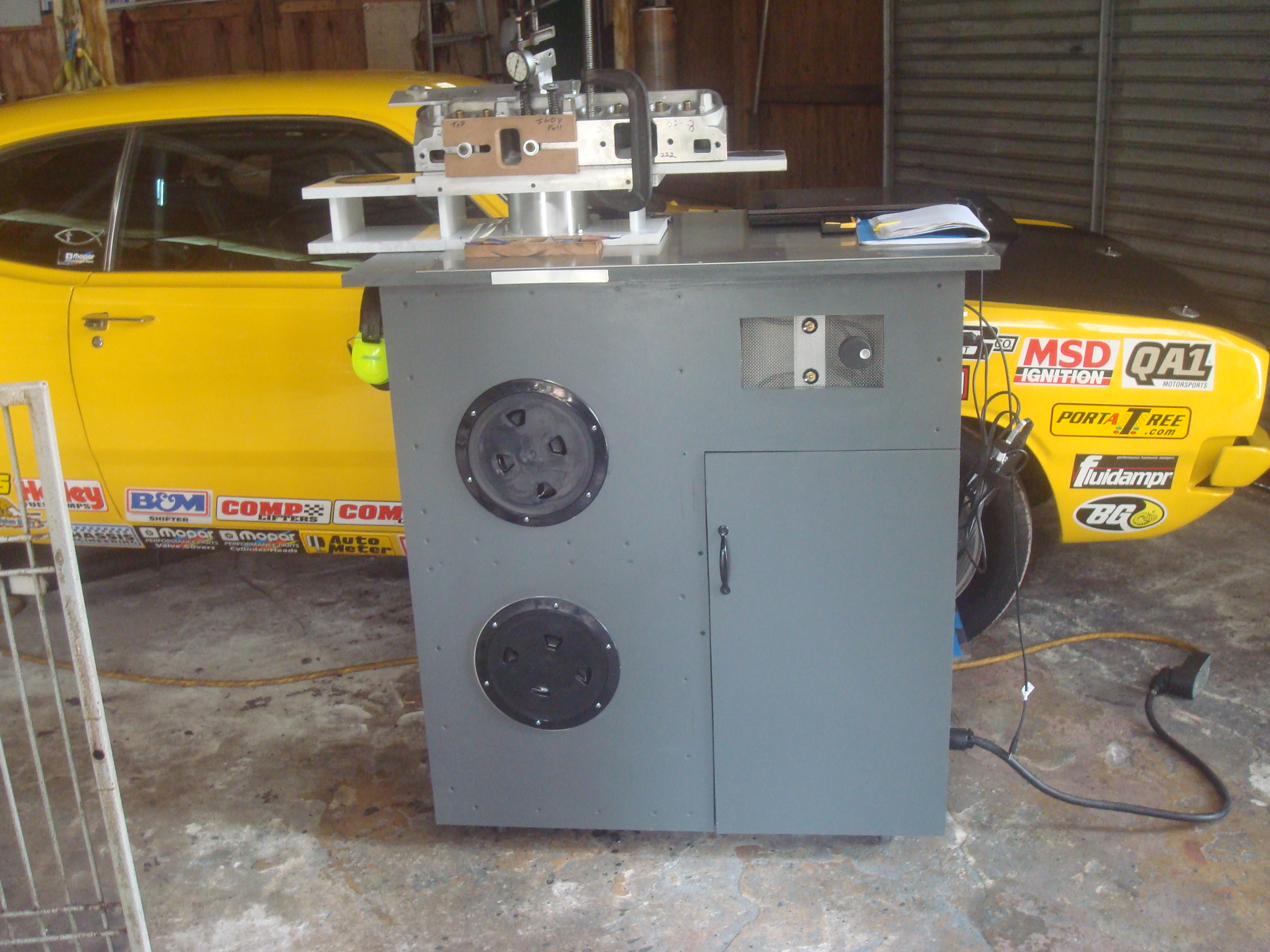

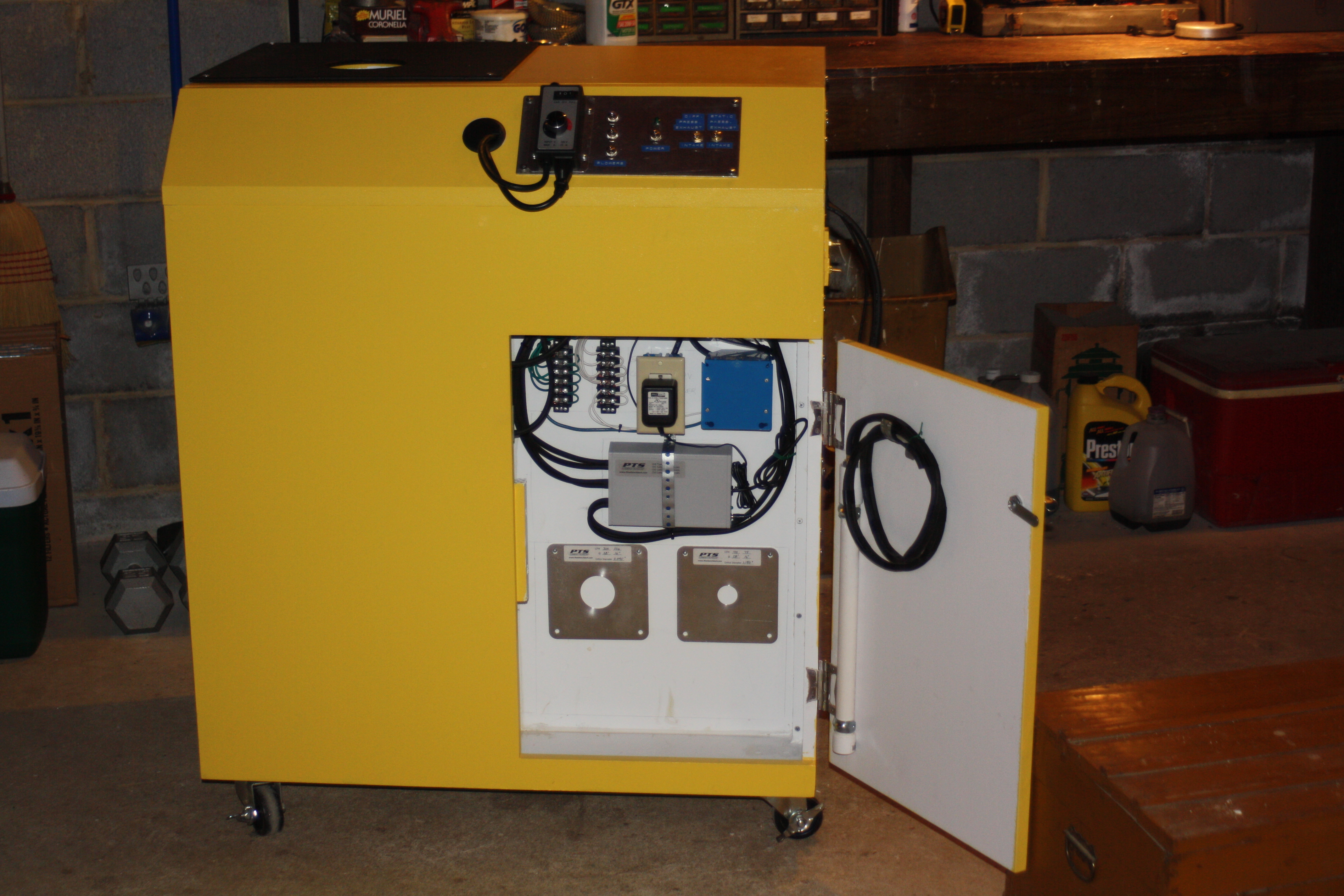

Customer Bench This bench has a total cost of around $600

It features:

  • 8 blowers (mix & match)
  • Home-made water gage manometers
  • CFM capacity of over 400cfm @28", max flow capacity has yet to be determined*.
  • Uses PTS Orifice Plates




*(due to mechanical problems with one set of blowers)

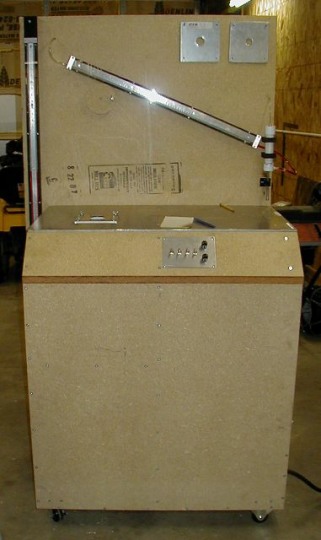

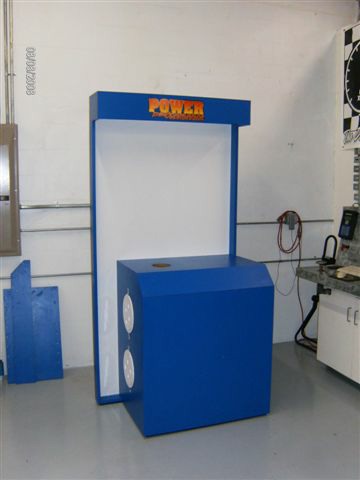

powers2  Showing a PTS Bench build with
the traditional back board.
(partial assembly)
powers1

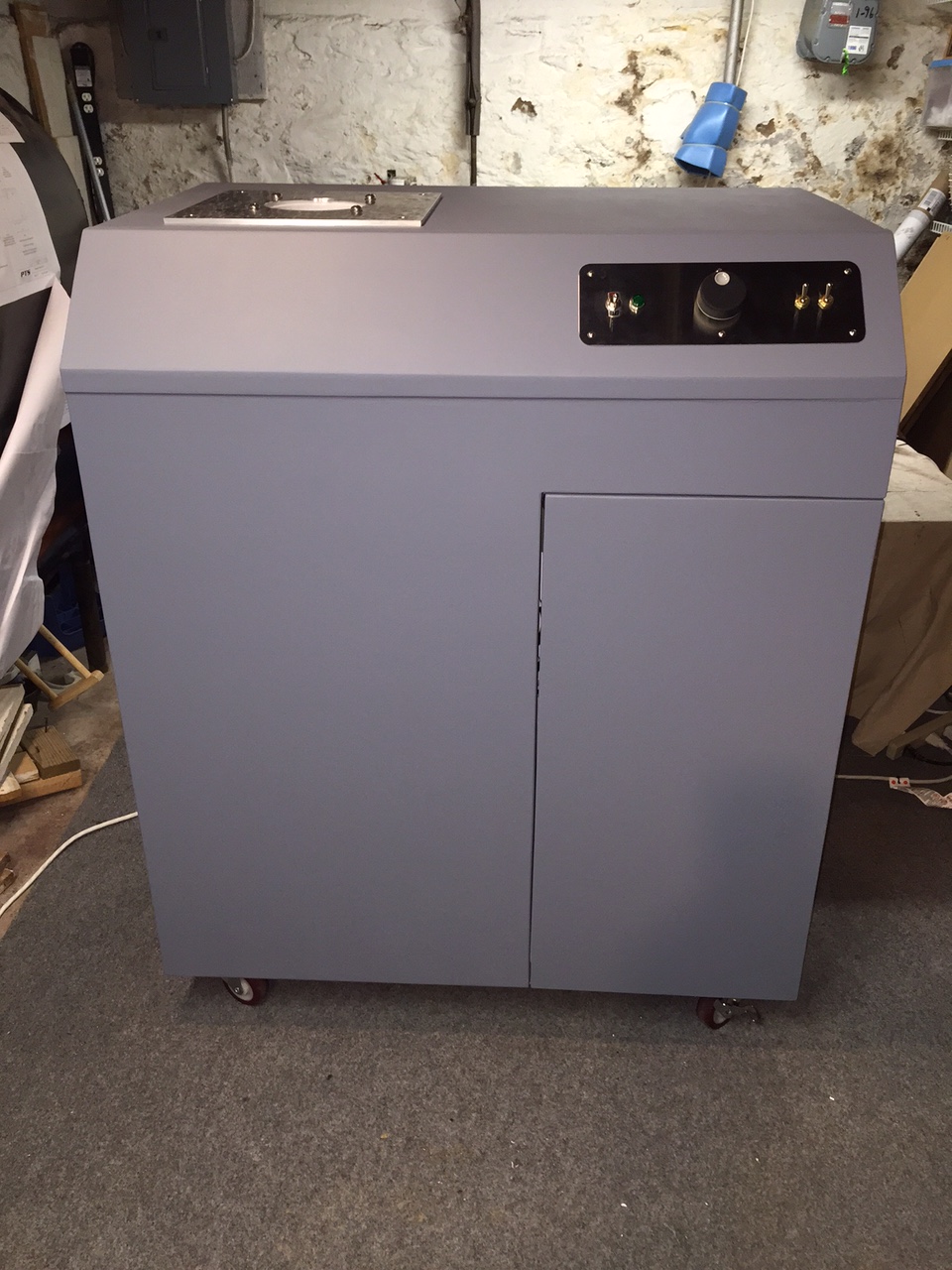

p205 Another customer's PTS Bench.

This one will be all digital using
the PTS Digital Manometer

Thanks for stopping by!
